JEZET MECHANICAL MICRO FILTER DUSTCLEANING SYSTEMS
At Archives, Libraries, Museums and other institutions, concerned with conservation
and restoration, it is well known, that dust cleaning is the first step in the series
of treatments. Necessary to a safe assimilation of the incoming objects, records,
books, textile products, etc. who can be stored in the depots, right away after cleaning,
permitted by their good condition or they who demands further treatments to reach
an acceptable condition, suitable for conservation or exhibition.
The elaboration of a good mechanical dry dust cleaning can make further treatments
superfluous, as for example disinfection, decontamination or wet-cleaning and/or
disinfection.
Conservation in dusty circumstances, changing and no suitable locations, as garrets,
damp cellars and tropical conditions could have effected in superficial pollution,
as dust, sand, spores, bacteria, insects, mould, etc. If not penetrated into the
original material, often the pollution is to be removed by good mechanical dry dust
cleaning, even with fragile and amorphous pieces, of course with the necessary skill,
caution and the proper equipment.
The standard vacuum-cleaners are not suitable and even dangerous to the people as
well to the objects, because the vacuum-cleaners are not constructed for this special
task, endurance use, suction velocity, filter surface, filter technology, filter
exchange and specially the micro-filtering, instead of filtering the very fine particles,
hazardous or not, these will be blown out and spread into the room and so contaminate
each and everybody.
In 1985 this was the main reason for the JEZET ENGINEERS, beside the other restoration
equipment, to start the development of a special THREE-STAGE DUST VACUUMCLEANER WITH
MICRO-FILTERING. A micro-cleaning responding to all qualifications for safe environmental
circumstances, ergonomic working, easy handling for anybody on any place such as
the depots, obliged very few and completely safe exchanging of the filters and still
adaptable to specific demands of each customer.
Specific ADVANTAGES of the JEZET THREE-STAGE MECHANICAL DUSTCLEANINGSYSTEM
THREE-STAGE filtering
1) CYCLONE of Polyethylene,
2) Cleanable large surface PRE-FILTER 99,95 % 2,0 ì (mu)
3) Extreme fine MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
No PRE-FILTER change and NON or very low rate of fine-filter exchange
Three suction points.
1) Main suction on large suction table makes it possible to recover loose particles
2) Very poor suction on flexible antistatic polyethylene hose with 6 exchangeable
tubular brushes of 2 sizes and 3 rigidities, easy to clean with Ethanol
3) extra suction point adaptable for the small hose of the own mini brushes or fine
cleaning.
SUCTION DEVICE with a brushless 3-phase electric motor, an adjustable suction force
capable from 0 to - 40 kPa or 40 % or – 280 mBar.
SINGLE PHASE NETCONNECTION of 230 V- 50 Hz. with 3 Special motor safety devices and
low noise level.
COMPACT, Mobile and to be used even in the depots Easy to operate. (Everything at
hand height) Easy to clean.
Custom built on client specification.

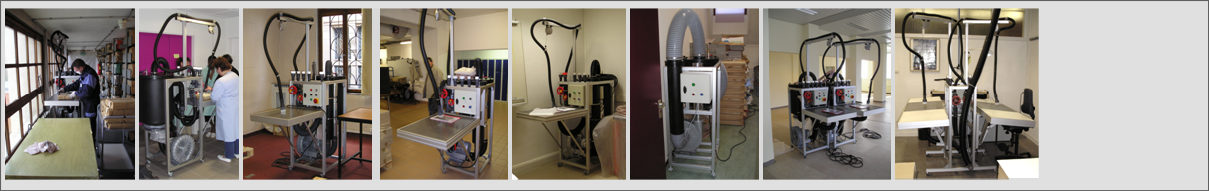

JEZET TRIPLE-FILTER DUSTCLEANINGSYSTEM DEPM-22131A-0507 is constructed of aluminum
profiles forming a very light and rigid frame movable on 4 casters with brakes, on
the frame is mounted the suction device with controls, the tiltable suction table
and the three stage filtering suction device composed out of:
CYCLONE made of hard polyethylene, for filtering of the bigger and even very fine
pieces
PRE-FILTER 99,95 % built-in the cyclone and easy to be cleaned, by means of a shot
of compressed air
MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
SUCTION DEVICE with a brushless 3-phase electric motor, capable of a suction force
of 40 %. but a SINGLE PHASE NETCONNECTION of 230 V- 50 Hz.
ONE SWING-ARM made of aluminium profiles Circling 150° angle, adjustable in height
with balancer to equalize the weight and height; a flexible antistatic polyethylene
suction hose with easy exchangeable tube-connector to fit six different tubular cleaning
brushes.
SUCTION TABLE of aluminium profiles with a fixed-in aluminium base-plate and a perforated
working surface made of hard wearing, easy to clean non corrosive, stainless steel.
The tabletop is connected on the frame by hinges and to be tilted down for more mobility
with a useful working surface of W x L = 550 x 750 mm.
JEZET TRIPLE-FILTER DUSTCLEANINGSYSTEM DEP-22131A-VT1007 is constructed of aluminum
profiles forming a very light and rigid frame movable on 4 casters with brakes, on
the frame is mounted the suction device with controls, the fixed suction table and
the three stage filtering suction device composed out of:
CYCLONE made of hard polyethylene, for filtering of the bigger and even very fine
pieces
PRE-FILTER 99,95 % built-in the cyclone and easy to be cleaned, by means of a shot
of compressed air
MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
SUCTION DEVICE with a brushless 3-phase electric motor, capable of a suction force
of 40 %. but a SINGLE PHASE NETCONNECTION of 230 V- 50 Hz.
ONE SWING-ARM made of aluminium profiles Circling 150° angle, adjustable in height
with balancer to equalize the weight and height; a flexible antistatic polyethylene
suction hose with easy exchangeable tube-connector to fit six different tubular cleaning
brushes.
A BIGGER SUCTION TABLE of aluminium profiles with a fixed-in aluminium base-plate
and a perforated working surface made of hard wearing, easy to clean non corrosive,
stainless steel. Connected to the third suction point by means of a flexible hose
of polyethylene. The tabletop is connected on to the frame with a useful working
surface of W x L = 1000 x 750 mm.
The JEZET TRIPLE-FILTER DUSTCLEANINGSYSTEM DEPM-22142A + VT1207 + WT1207 is consisting
of THREE separate UNITS
1) SUCTION-FILTER UNIT made of aluminum profiles forming a very light and rigid frame
movable on 4 casters with brakes, on the frame is mounted the suction device with
controls and the three stage filtering suction device composed out of:
CYCLONE made of hard polyethylene, for filtering of the bigger and even very fine
pieces
PRE-FILTER 99,95 % built-in the cyclone and easy to be cleaned, by means of a shot
of compressed air
MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
DOUBLE SUCTION DEVICE with a brushless 3-phase electric motor, capable of a suction
force of 40 %. but a SINGLE PHASE NETCONNECTION of 230 V- 50 Hz.
TWO SWING-ARMS made of aluminium profiles Circling 150° angle, adjustable in height
with balancer to equalize the weight and height; a flexible antistatic polyethylene
suction hose with easy exchangeable tube-connector to fit six different tubular cleaning
brushes.
2) SUCTION TABLE of aluminium profiles with a fixed-in aluminium base-plate and a
perforated working surface made of hard wearing, easy to clean non corrosive, stainless
steel. Connected to the fourth suction point by means of a flexible hose of polyethylene.
Mounted on 4 legs of aluminium profile with levelling feet. The size of the useful
working surface is W x L = 1200 x 750 mm.
3) WORK TABLE of aluminium profile JZ800 with a working surface made of hard wearing
gray Trespa, dimensions W x L = 1200 x 750 mm. Mounted on 4 legs of aluminium profile
with levelling feet.
JEZET TRIPLE-FILTER DUSTCLEANINGSYSTEM DEPM-3031 + 2VTHpKm05072A-4WTKm0505 is consisting
of TWO separate UNITS
1) DOUBLE SUCTION/WORK TABLE UNIT is composed out of aluminum profiles forming a
very light and rigid frame movable on 4 casters with brakes, on the frame is mounted
2 SWING-ARMS made of aluminium profile, light and rigid and flexible polyethylene
special suction tube. Circling 150° angle, easy exchangeable tube-connector to fit
six different tubular cleaning brushes.
2 SUCTION TABLES pneumatic stepless adjustable in height 400 mm and in angle 10º
made off aluminium profiles with a fixed-in aluminium base-plate and a perforated
working surface W x L = 700 x 580 mm. made of hard wearing, easy to clean non corrosive,
stainless steel. Connected to the multi suction point by means of flexible hoses
of polyethylene. On both sides of each suction table are tiltable connected
4 WORK TABLES tiltable down to vertical also made of aluminium profile with a working
surface made of hard wearing white Trespa. The size of the useful working surface
is W x L = 580 x 580 mm
The dimensions of the total surface of suction surface and two work surfaces are
W x L = 1800 x 580 mm.
The electric and pneumatic control units, brushes, the 5-way hose connection and
valves are also mounted on table unit.
2) SUCTION-FILTER UNIT and placed in another room is composed out of aluminum profiles
forming a very light and rigid frame movable on 4 casters with brakes, on the frame
is mounted the suction device and the three stage filtering suction device composed
out of:
CYCLONE made of hard polyethylene, for filtering of the bigger and even very fine
pieces
PRE-FILTER 99,95 % built-in the cyclone and easy to be cleaned, by means of a shot
of compressed air
MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
DOUBLE SUCTION DEVICE with a brushless 3-phase electric motor, capable of a suction
force of 40 %.
TRI PHASE NETCONNECTION of 380 V- 50 Hz.
JEZET TRIPLE-FILTER DUSTCLEANINGSYSTEM DEPM-2211 + 2VWTHe18052A is consisting of
TWO separate UNITS
1) DOUBLE SUCTION/WORK TABLE UNIT is composed out of aluminum profiles forming a
very light and rigid frame movable on 4 casters with brakes, on the frame is mounted
2 SWING-ARMS made of aluminium profile, light and rigid and flexible polyethylene
special suction tube. Circling 150° angle, easy exchangeable tube-connector to fit
six different tubular cleaning brushes. 2 SUCTION/WORK TABLES electric stepless adjustable
in height 500 mm made off aluminium profiles with a fixed-in aluminium base-plate
and a perforated working surface made of hard wearing, easy to clean non corrosive,
stainless steel. Connected to the multi suction point by means of flexible hoses
of polyethylene. On both sides of each SUCTION SURFACE W x L = 700 x 580 mm. are
2 WORK SURFACES made of hard wearing white Trespa. The dimensions of the total surface
of suction surface and two work surfaces are W x L = 1800 x 580 mm. The electric
and pneumatic control units, brushes, the 5-way hose connection and valves are also
mounted on table unit.
2) SUCTION-FILTER UNIT and placed in another room is composed out of aluminum profiles
forming a very light and rigid frame movable on 4 casters with brakes, on the frame
is mounted the suction device and the three stage filtering suction device composed
out of:
CYCLONE made of hard polyethylene, for filtering of the bigger and even very fine
pieces
PRE-FILTER 99,95 % built-in the cyclone and easy to be cleaned, by means of a shot
of compressed air
MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
DOUBLE SUCTION DEVICE with a brushless 3-phase electric motor, capable of a suction
force of 40 %.
SINGLE PHASE NETCONNECTION of 230 V- 50 Hz.
JEZET TRIPLE-FILTER DUSTCLEANINGSYSTEM DEPM-2211 + VTWHe1207021A is consisting of
TWO separate UNITS
1) SUCTION TABLE/WALL is composed out of aluminum profiles forming a very light and
rigid frame electric stepless adjustable in height 500 mm movable on 4 casters with
brakes, on the frame is mounted
1 SWING-ARM made of aluminium profile, light and rigid and flexible polyethylene
special suction tube. Circling 150° angle, easy exchangeable tube-connector to fit
six different tubular cleaning brushes.
1 SUCTION TABLE/WALL is executed in a table and wall section both made off aluminium
profiles with a fixed-in aluminium base-plate and a perforated working surface made
of hard wearing, easy to clean non corrosive, stainless steel. Connected to the suction
point by means of LARGE DIAMETER flexible HOSE of polyethylene. TABLE SUCTION SURFACE
is W x L = 1200 x 700 mm. The WALL SUCTON SURFACE is W x L = 1200 x 700 mm.
2) SUCTION-FILTER UNIT and placed in another room is composed out of aluminum profiles
forming a very light and rigid frame movable on 4 casters with brakes, on the frame
is mounted the suction device and the three stage filtering suction device composed
out of:
CYCLONE made of hard polyethylene, for filtering of the bigger and even very fine
pieces
PRE-FILTER 99,95 % built-in the cyclone and easy to be cleaned, by means of a shot
of compressed air
MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
SUCTION DEVICE with a brushless 3-phase electric motor, capable of a suction force
of 30 %.
SINGLE PHASE NETCONNECTION of 230 V- 50 Hz.
The JEZET TRIPLE-FILTER DUSTCLEANINGSYSTEM DEPM-30342A + VTKp1810 + WT1810 consists
of THREE separate UNITS
1) SUCTION TABLE pneumatic stepless adjustable in angle to 45º made of aluminium
profiles with a fixed-in aluminium base-plate and a perforated working surface made
of hard wearing, easy to clean non corrosive, stainless steel. Connected to the fourth
suction point by means of a flexible hose of antistatic polyethylene. Mounted on
2 supports of aluminium profile plus plating of Trespa with 4 levelling feet. The
size of the useful working surface is W x L = 1800 x 1000 mm.
2) WORK TABLE of aluminium profile JZ800 with a working surface made of hard wearing
white Trespa, dimensions W x L = 1800 x 1000 mm. Mounted on 2 supports of aluminium
profile with levelling feet.
3) SUCTION-FILTER UNIT made of aluminum profiles forming a very light and rigid frame
movable on 4 casters with brakes, on the frame is mounted the suction device with
controls and the three stage filtering suction device composed out of:
CYCLONE made of hard polyethylene, for filtering of the bigger and even very fine
pieces
PRE-FILTER 99,95 % built-in the cyclone and easy to be cleaned, by means of a shot
of compressed air
MICRO-FILTER 99,997 % at DOP test 0,3 ì (mu)
SUCTION DEVICE with a brushless 3-phase electric motor, capable of a suction force
of 40 %.
TRI PHASE NETCONNECTION of 380 V- 50 Hz.
TWO SWING-ARMS made of aluminium profiles Circling 150° angle, adjustable in height
with balancer to equalize the weight and height; a flexible antistatic polyethylene
suction hose with easy exchangeable tube-connector to fit six different tubular cleaning
brushes.
