Charter / Parchment manipulation such as Flattening / Tensioning / Stretching / Lining / filling up

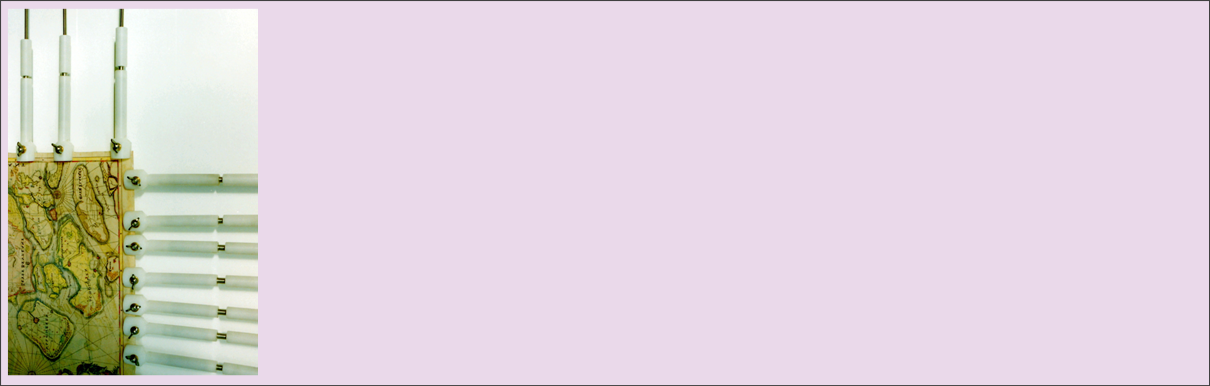

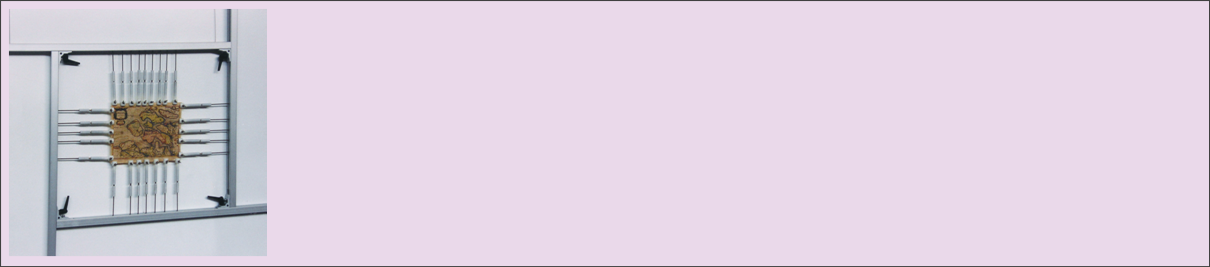

JEZET VARIABLE TENTER TO STRETCH PARCHMENTS is developed in order to be able to stretch parchments, (those who have shrunk or deformed, for instance owing to water damage), to the original normal size and to stretch charters that have been folded for a long time, till they are absolutely flat and smooth again.
Although the tenter was designed special for stretching of parchments, other materials
also can be stretched like: woven textiles, felt, leather, paintings, non-
The JEZET offer one execution and one size, but are also able to manufacture every size and to particular requirements.
The dimensions of THIS JEZET variable tenter to stretch parchments are 1600 x 1400 mm. permitting to stretch parchments with sizes from an absolute minimum of 70 x 70 mm. up to a maximum of 850 x 650 mm. With a quantity of 8 up to 80 stretchers. Easily put away right to or on the wall, out off the way, especially while the stretching process takes a long time for each parchment.
The separate supplied JEZET-
The advantages of the JEZET TENTER TO STRETCH PARCHMENTS:
Adaptable to the size and shape of the parchments -
Stretch tension capability (shrinking)
Safe and easy handling, ergonomic forms
Stretchers to be inserted on each leg
Out of the way during the stretching process
Easy to clean, inert materials aluminium, stainless steel and polyamide -
JEZET VARIABLE TENTER TO STRETCH PARCHMENTS SPRV-
24 JEZET-
Frame size variable
Parchments sizes
Stretchers
maximum of 1600 x 1400 mm
minimum of 70 x 70 mm. up to a maximum of 950 x 750 mm
minimum 12 and maximum 48
Seal Restoration Tools -

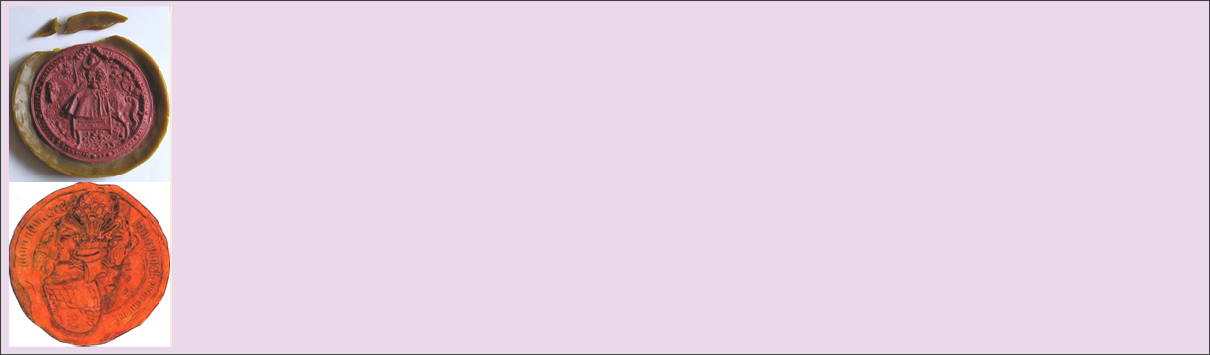

Archives, Libraries, Museums and other institutions have problems with seal collections containing broken and damaged wax seals and sealing wax impressions in particular, mostly cut off the original document, but also seals still connected to the charters or documents, especially seals affixed with many to one document
Partly is the damage caused by the manner of conservation but mostly by the handling in the past. To restore or repair a special tool had to be developed, not the changed and customized soldering iron but a proper apparatus.
The important demand was, that the set temperature corresponded precisely with the temperature in the tip or spatula. Further demands are a well verified the temperature area and the tools themselves, light in weight and easy to handle
Jezet has developed for the restoration seals, the JEZET THERMAL SEAL RESTORATOR
A piece of thermal restoration tool of JEZET quality for the heat treatment not only seals but also of paper, bindings, paintings, photographs and on a small scale laminating of paper which needs support by means of polyethylene film.
ADVANTAGES of the JEZET THERMICAL SEAL RESTORER:
1,2 or 3 units and tools simultaneous working
Temperature range 50 °C to 150 °C
Temperature control in tip of the tool
With an exact accuracy of 1,5° C
Exchangeable tips and spatulas
Tip and spatula forms on demand
24 volt AC safety low Watt units
Direct, Simple, Easy and Safe handling

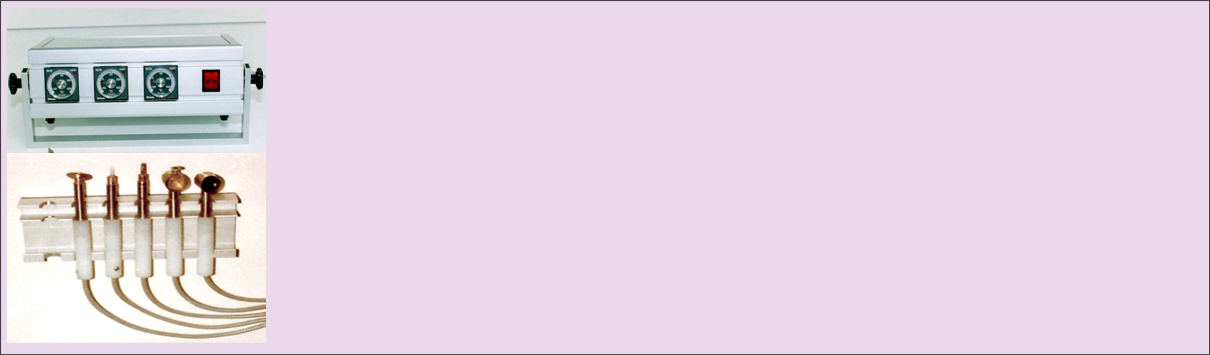

JEZET THERMAL SEAL RESTORER ZRSI-
The combination of micro thermostat and adjustment device makes it possible to adjust
in a few seconds the temperature fall which arises by contact between restoration-
The 3 TOOLS, in stainless designs with silicone cable and plug, 24V, plus 3 tips
are available in the following forms Knife-
Round spade
Power supply
Wattage total 3 tools
Voltage to 3 tools
Temperature range and accuracy
Weight
230 V single phase 50 Hz -
72 Watt
24 Volt AC
50° C to 150° C and 1,5° C
4,3 kg

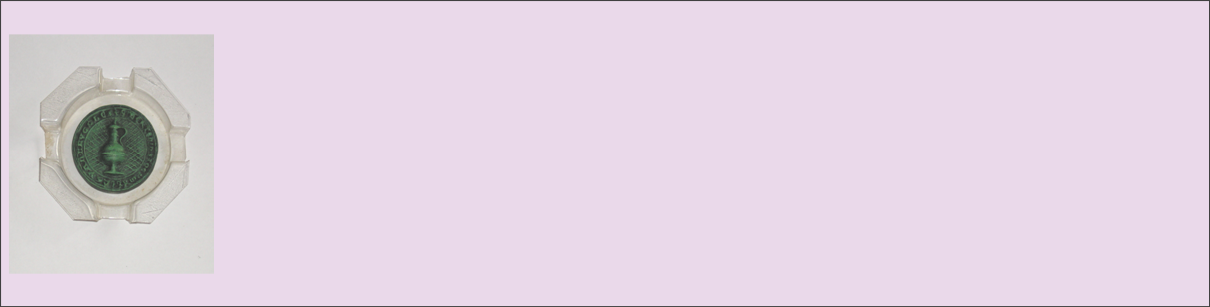

Seal Protection cups of transparent Polycarbonate
JEZET SEAL PROTECTION CUP PRODUCER ZBPC-
The machine is consisting of a support frame of aluminium profiles on 4 castors with brakes. The base of the frame is prepared with a plate of Aluminium to carry the electric vacuum unit, the control box and the vacuum tank of 100 litres which is connected with the suction pipe on the inserted base plate of the vacuum tabletop which is constructed of a frame made out of aluminium softline profile JZ 800 and the base creating a compartment for vacuum to restrain even a higher vacuum and provided with a heavy duty support grid, porous work surface of 400 x 300 mm made of stainless steel.
The different mould shapes will be placed on de porous work surface.
On top of the vacuum table a divided top unit consisting of a clamp flense for the transparent Polycarbonate film and the top section with the heating elements.
Usable Surface for the moulds
Outside dimensions -
Maximum power consumption
Compressed air consumption maximum
Noise level with suction unit running
Total weight
Colour
400 x 300 mm
W x D = 500x 400 mm. -
1,5 k Watt 230 Volt – 50 Hz single phase Euro connector with flexible cable of 3 m
350 litres per minute at 6 Bar
maximum of 60 dB otherwise 45 dB
approximately 35 kg
Silver and black
